The washers we offer are used to remove impurities and clean rock material from clay, silt, marl, and are also perfect for washing out organic impurities such as charcoal, roots, etc.

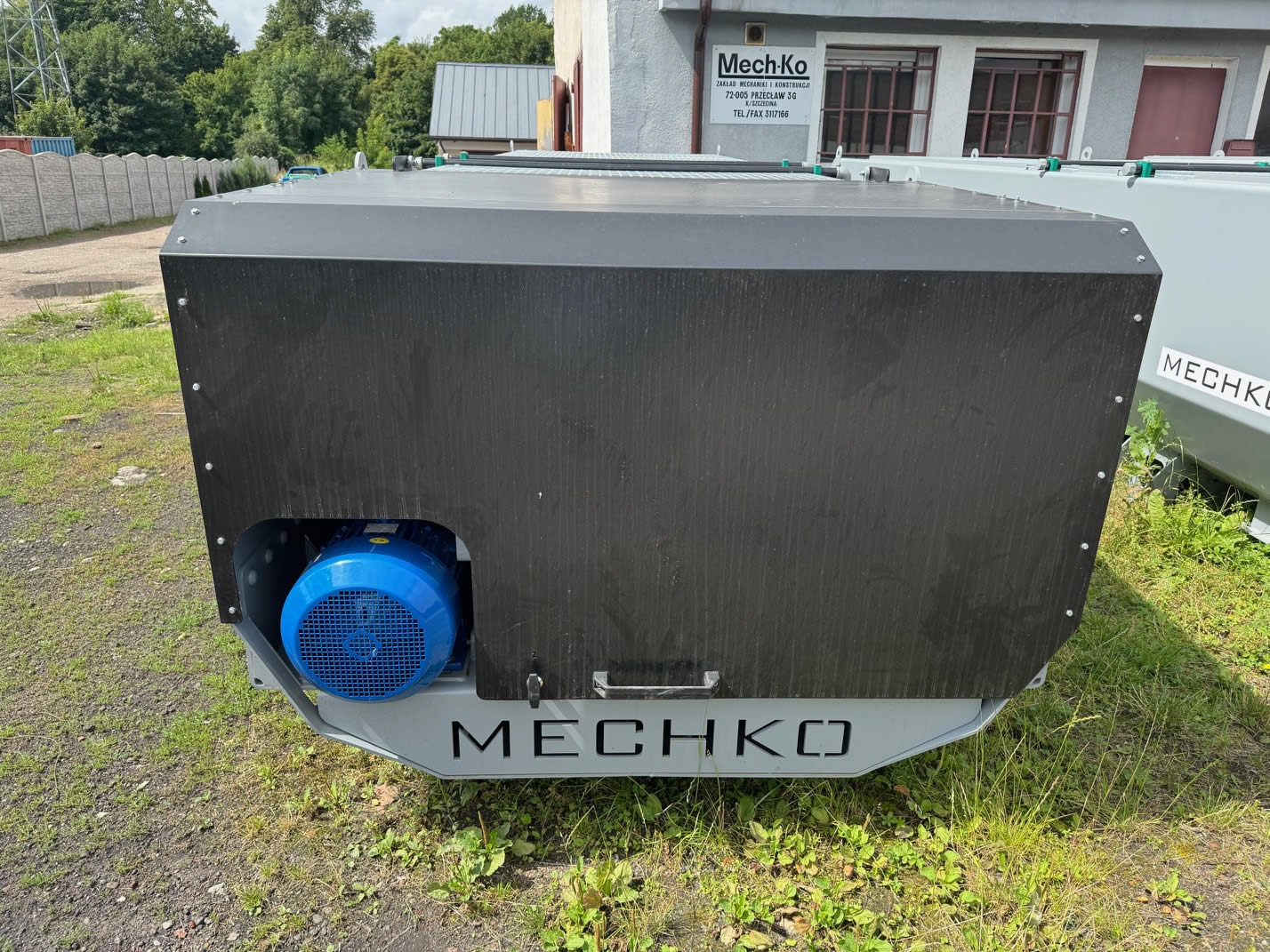

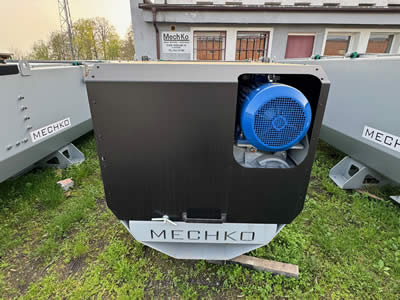

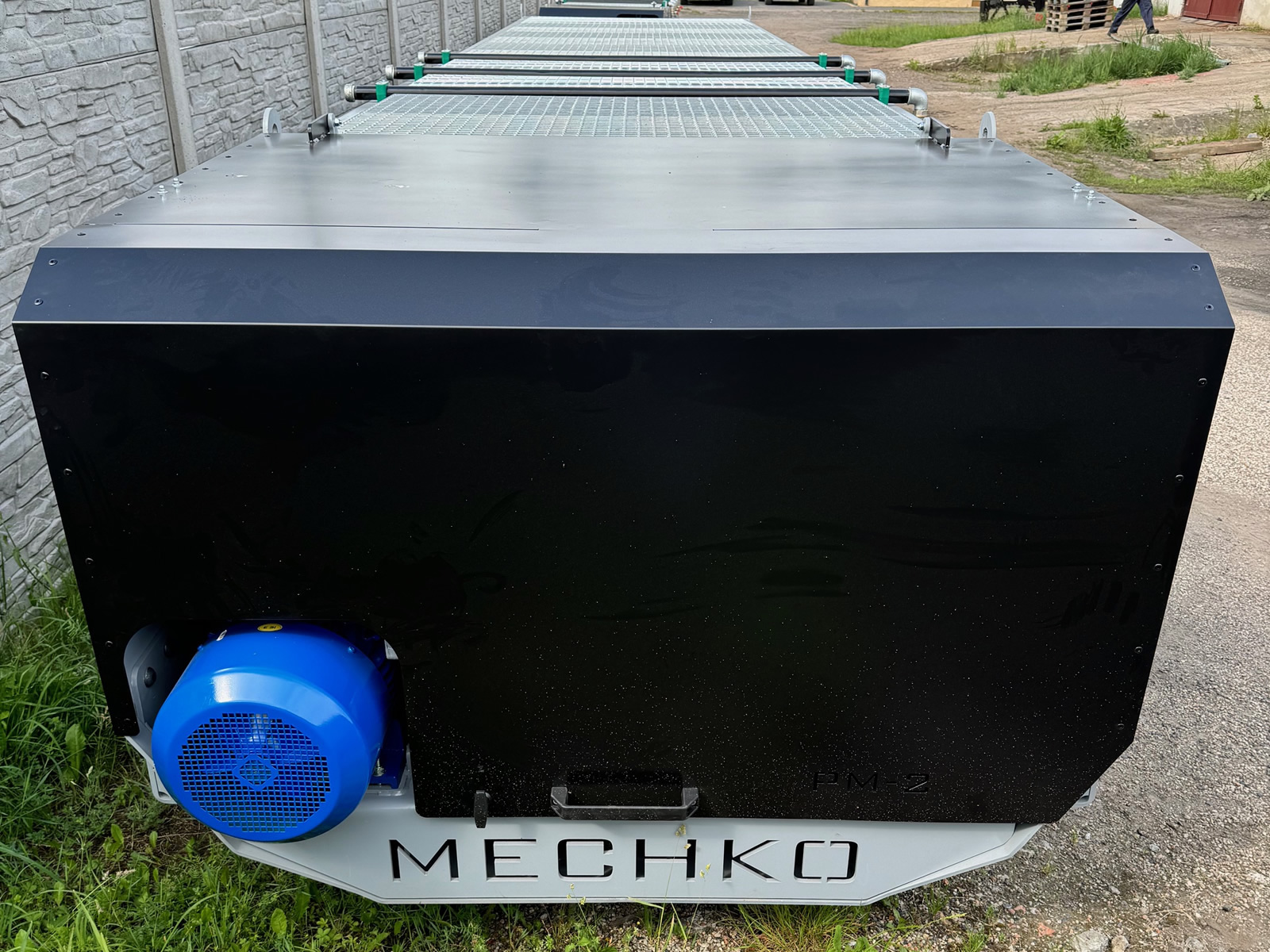

The washers are made of <one or two shafts enclosed in a steel tank and driven by an electric motor.

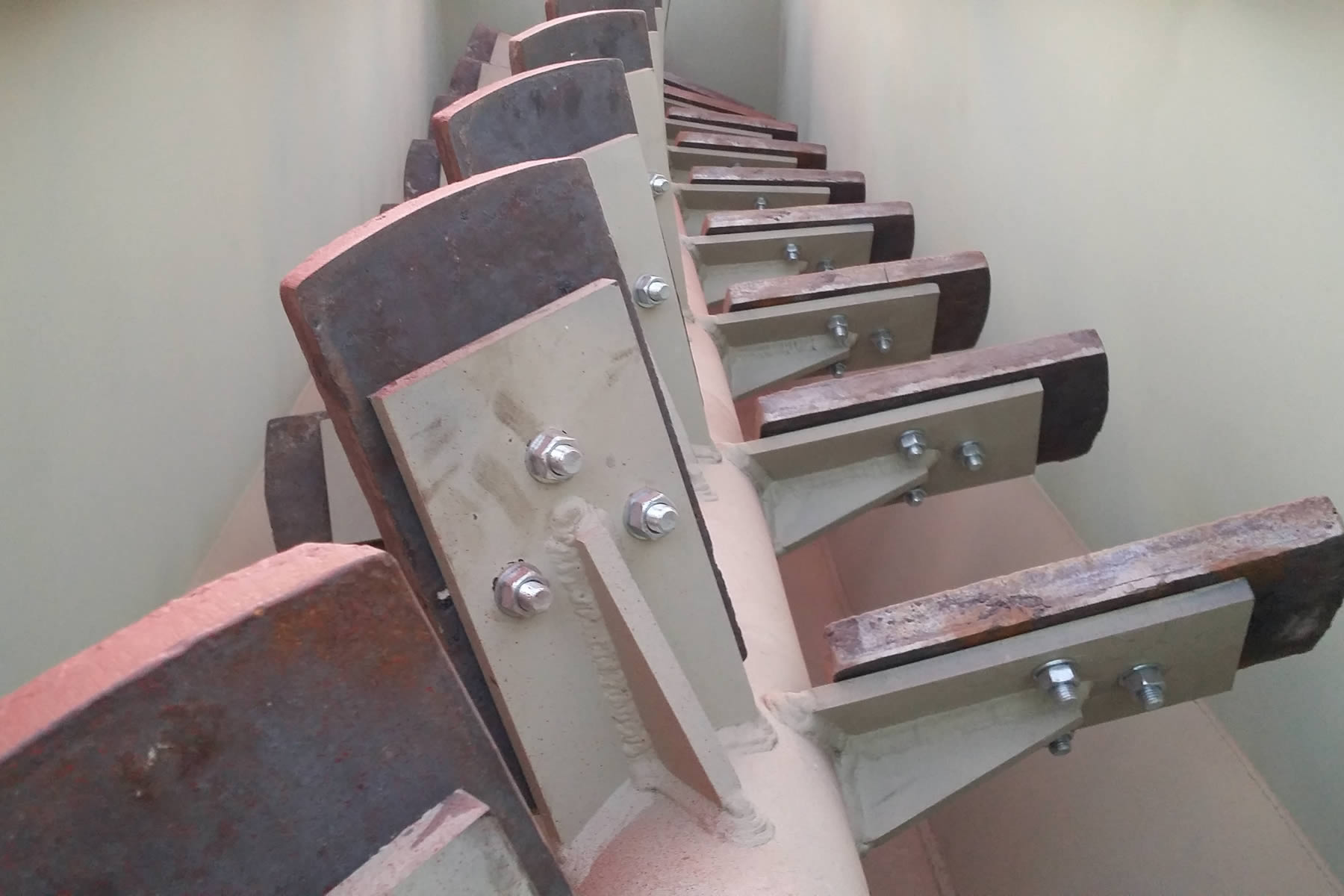

Each shaft is equipped with steel or polyurethane shredding swords arranged alternately. The whole thing is spray-painted.
Eliminates clay impurities and other impurities, including organic ones such as coal, wood, etc., in the process of refining natural and crushed aggregates.
It achieves cleaning action both by impacts and cutting of blades, as well as by friction occurring between grains, as a result of the movement of the material during transport.
A suitably long rinsing section additionally provides an excellent cleaning and dewatering effect, while the spray placed above the washer trough ensures thorough cleaning of the material surface before it leaves.
Aggregate with a granulation of 2 to 32 mm can be fed for rinsing.
| Dimensions [LxWxH]: | 6200x1120x1160 mm |
| Active shaft length [L]: | 5000 mm |
| Shaft diameter: | 1000 mm |
| Power: | 11 kW |
| Efficiency [Q]: | 70 T/h |
Eliminates clay impurities and other impurities, including organic ones such as coal, wood, etc., in the process of refining natural and crushed aggregates.
It achieves cleaning action both by impacts and cutting of blades, as well as by friction occurring between grains, as a result of the movement of the material during transport.
A suitably long rinsing section additionally provides an excellent cleaning and dewatering effect, while the spray placed above the washer trough ensures thorough cleaning of the material surface before it leaves.
Aggregate with a granulation of 2 to 32 mm can be fed for rinsing.
| Dimensions [LxWxH]: | 8500x1500x1160 mm |
| Active shaft length [L]: | 7000 mm |
| Shaft diameter: | 1000 mm |
| Power: | 15 kW |
| Efficiency [Q]: | 50-100 T/h |
Eliminates clay impurities and other impurities, including organic ones such as coal, wood, etc., in the process of refining natural and crushed aggregates.
It achieves cleaning action both by impacts and cutting of blades, as well as by friction occurring between grains, as a result of the movement of the material during transport.
A suitably long rinsing section additionally provides an excellent cleaning and dewatering effect, while the spray placed above the washer trough ensures thorough cleaning of the material surface before it leaves.
Aggregate with a granulation of 2 to 32 mm can be fed for rinsing.
| Dimensions [LxWxH]: | 7300x1260x1660 mm |
| Active shafts length [L]: | 5000 mm |
| Shafts diameter: | 1000 mm |
| Power: | 15 kW |
| Efficiency [Q]: | 120-160 T/h |
Eliminates clay impurities and other impurities, including organic ones such as coal, wood, etc., in the process of refining natural and crushed aggregates.
It achieves cleaning action both by impacts and cutting of blades, as well as by friction occurring between grains, as a result of the movement of the material during transport.
A suitably long rinsing section additionally provides an excellent cleaning and dewatering effect, while the spray placed above the washer trough ensures thorough cleaning of the material surface before it leaves.
Aggregate with a granulation of 2 to 32 mm can be fed for rinsing.
| Dimensions [LxWxH]: | 9000x1560x1660 mm |
| Active shafts length [L]: | 7000 mm |
| Shaft diameter: | 1000 mm |
| Power: | 22 kW |
| Efficiency [Q]: | 120-160 T/h |
